JDM Honda B16b Engine For Sale

JDM Honda B16b Engine For Sale.The robust B16B motor was specially produced for the Civic EK9 Type R. The 1595cc engine features Honda’s legendary VTEC system and is capable of revving all the way up to 8900 RPM. This reliable elongated Block B16B engine has a verified 49,893 miles on the counter. The engine produces up to 185HP and is renowned in the Honda circuit for its ability to pack a punch and box seriously above its weight class.

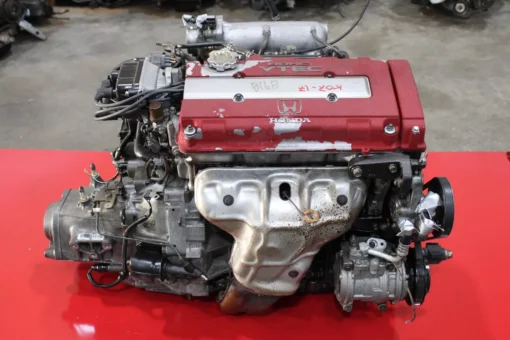

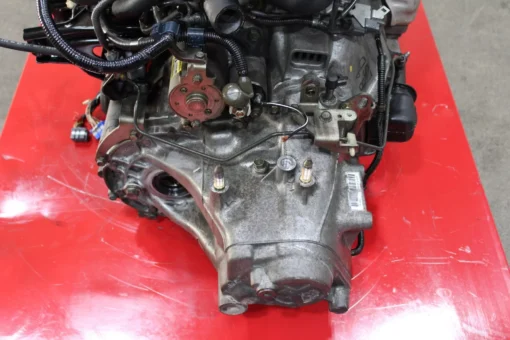

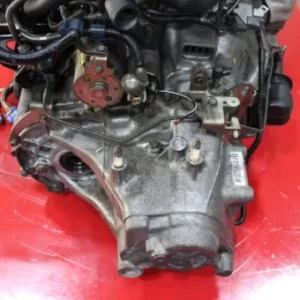

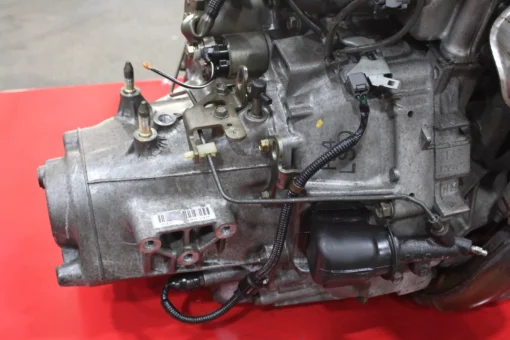

What you get here is a clean, top-performance JDM Honda B16B engine for sale, with CTR, LSD trans, ECU Wiring, perfect for all types of build or swap projects for Honda CIVIC, CRX, Integra, amongst others.



Parts Included In The JDM Unit

• Head & Block Engine
• Timing Components
• Intake Manifold
• Exhaust Manifold
• Fuel & Rail Injectors
• Throttle Body
• Coil Packs (Distributor)
• Alternator
• A/C
• Power Steering Pump
• Map Sensor
• TPS
• Pulleys
• Oil Pan
• Sensors



Honda B16B Engine Reference Specs

Manufacturer	Honda Motor Company
Also called	Honda B16
Initial Production	1989-2000
Cylinder block alloy	Aluminum
Configuration	Inline-4
Valvetrain	DOHC 4 valves per cylinder
Piston stroke, mm (inch)	77.4 (3.05)
Cylinder bore, mm (inch)	81 (3.19)
Compression ratio	10.2 10.4 10.8
Displacement	1595 cc (97.3 cu in)
Power output	110 kW (150 HP) at 7,600 rpm 116 kW (158 HP) at 7,800 rpm 117 kW (160 HP) at 7,600 rpm 117 kW (160 HP) at 7,600 rpm 122 kW (167 HP) at 7,800 rpm 125 kW (170 HP) at 7,800 rpm 136 kW (185 HP) at 8,200 rpm
Torque output	150 Nm (110 lb·ft) at 7,100 rpm 150 Nm (110 lb·ft) at 7,000 rpm 152 Nm (112 lb·ft) at 7,000 rpm 150 Nm (110 lb·ft) at 7,500 rpm 150 Nm (110 lb·ft) at 7,300 rpm 160 Nm (118 lb·ft) at 7,300 rpm 163 Nm (120 lb·ft) at 7,500 rpm
Redline	8,000 (B16A2, B16A3) 8,200 (B16A1) 8,300 (B16A5) 8,400 (B16B Type R)
HP per liter	94 99 100 104 106 115
Fuel type	Gasoline
Weight, kg (lbs)	183 (403)
Fuel consumption, L/100 km (mpg) --> City --> Highway --> Combined	Honda Civic 10.2 (23) 6.4 (37) 7.6 (31)
Turbocharger	Naturally aspirated
Oil consumption, L/1000 km (qt. per miles)	up to 1.0 (1 qt. per 600 miles)
Recommended engine oil	5W-30 5W-40 10W-30 10W-40 10W-50 15W-40 15W-50
Engine oil capacity, L (qt.)	4.0 (4.2)
Oil change interval, km (miles)	5,000-10,000 (3,000-6,000)
Normal engine operating temperature, °C (F)	–
Engine lifespan, km (miles) -Official information -Real	– 300,000+ (180,000)
Tuning, HP -Max HP -No life span loss	250+ –
The engine is installed in	Honda Civic Honda CRX Honda Integra
