JDM Mazda RX-7 FD 13B-REW Engine For Sale

 Mazda RX-7 Twin Turbo 13B-REW Engine For Sale

JDM Mazda RX-7 FD 13B-REW Engine For Sale.The ergonomic and robust 13B-REW motor is the twin-turbo version of the 13B engine designed to power the third-generation RX-7 launched in late 1991. Each rotor on 13B-REW has a single combustion chamber volume of 654cc. With two rotors, the total displacement was 1308cc. Perfect fit for a Mazda swap or replacement project.

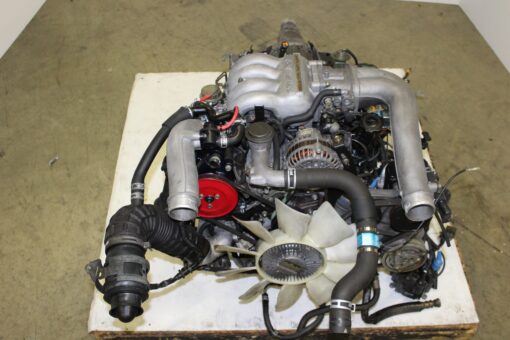

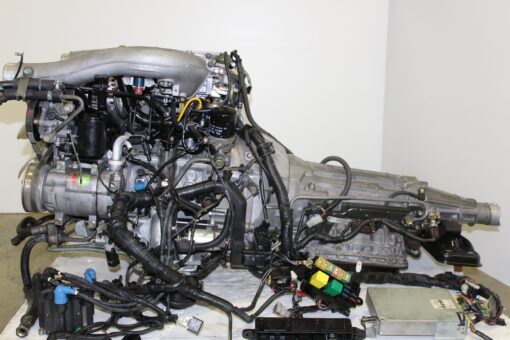

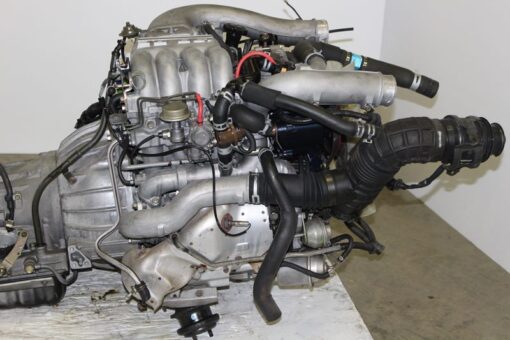

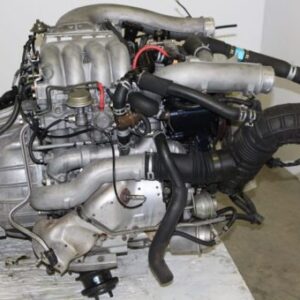

Here you get a clean, top-performance Mazda RX-7 twin-turbo, 13b-rew engine for sale, with a little over 55000km covered.



Parts Included With The JDM Unit

• Engine Head & Block
• Wiring harness
• Intake Manifold
• Exhaust Manifold
• ECU
• Injectors
• A/C Compressor
• Alternator
• 5 Speed MT Trans
• Starter
• Clutch

The Mazda RX-7 Twin Turbo 13B-REW engine is a renowned rotary engine known for its performance. Here are some specifications for the 13B-REW engine commonly found in the third-generation (FD) Mazda RX-7:

1. Engine Type: Rotary engine
2. Configuration: Twin-turbocharged
3. Displacement: 1.3 liters (2 x 654 cc rotors)
4. Power Output: Approximately 255 horsepower (factory rating for stock engines; actual power may vary based on modifications and tuning)
5. Torque: Approximately 217 lb-ft
6. Compression Ratio: 9.0:1
7. Turbochargers: Sequential twin-turbo setup (one primary turbo and one secondary turbo)
8. Fuel System: Multi-port fuel injection
9. Redline: Around 8,000 to 8,500 RPM
10. Rotary Configuration: 2-rotor Wankel engine (13B), twin-rotor with two sequential turbochargers (RE, for rotary engine)

*Every other part and accessory visible in the image. What you see is exactly what you get!
